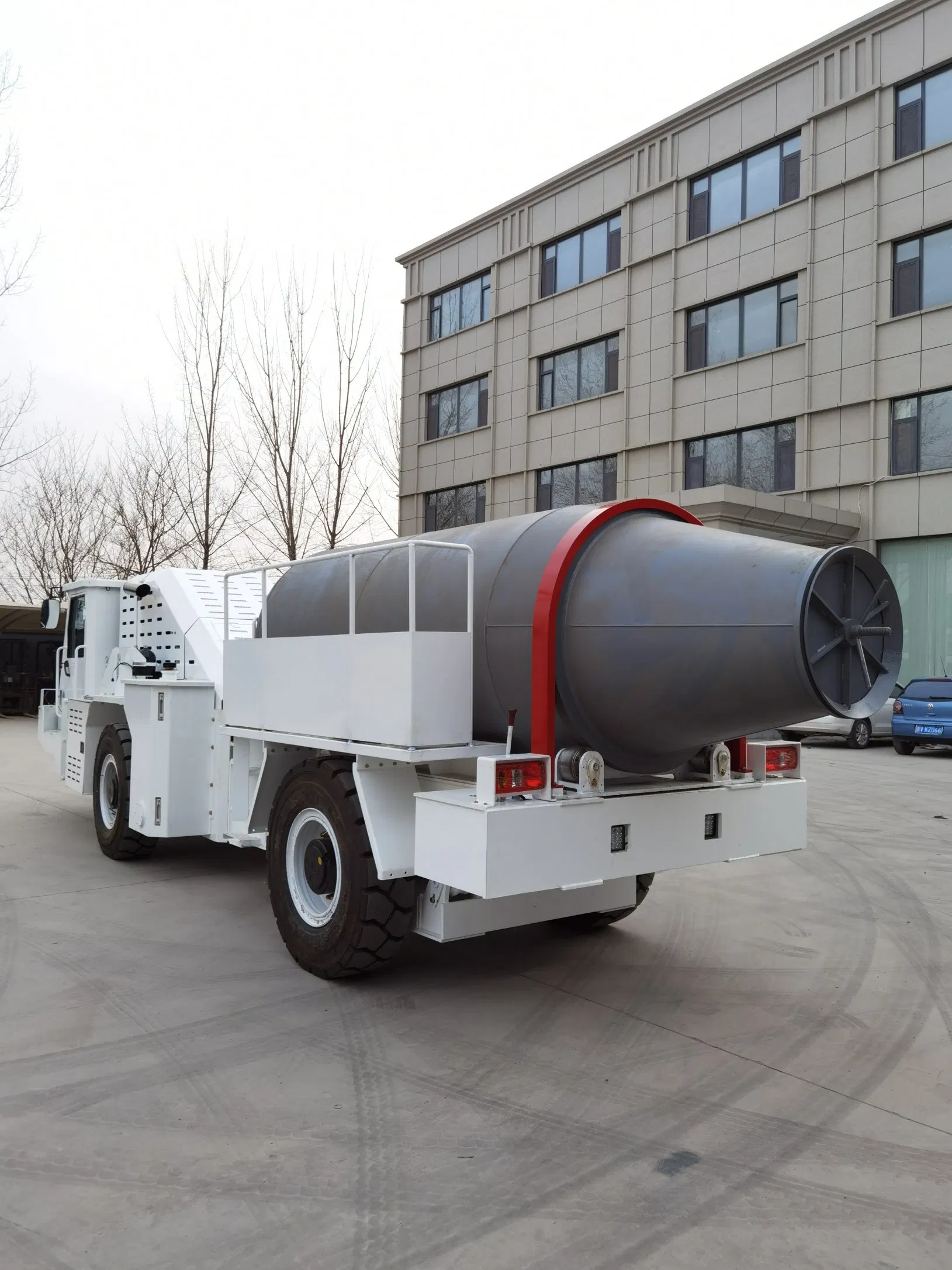

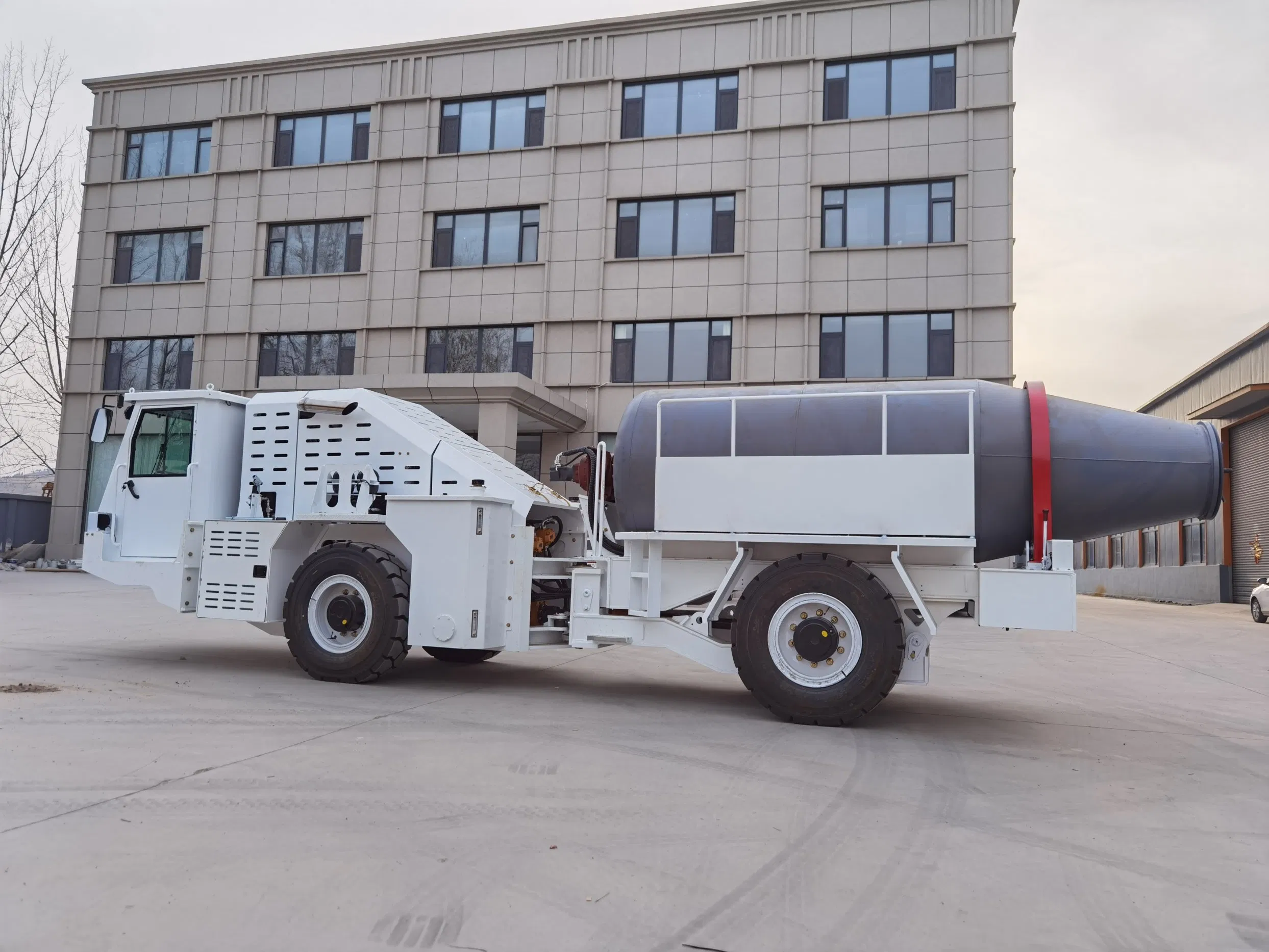

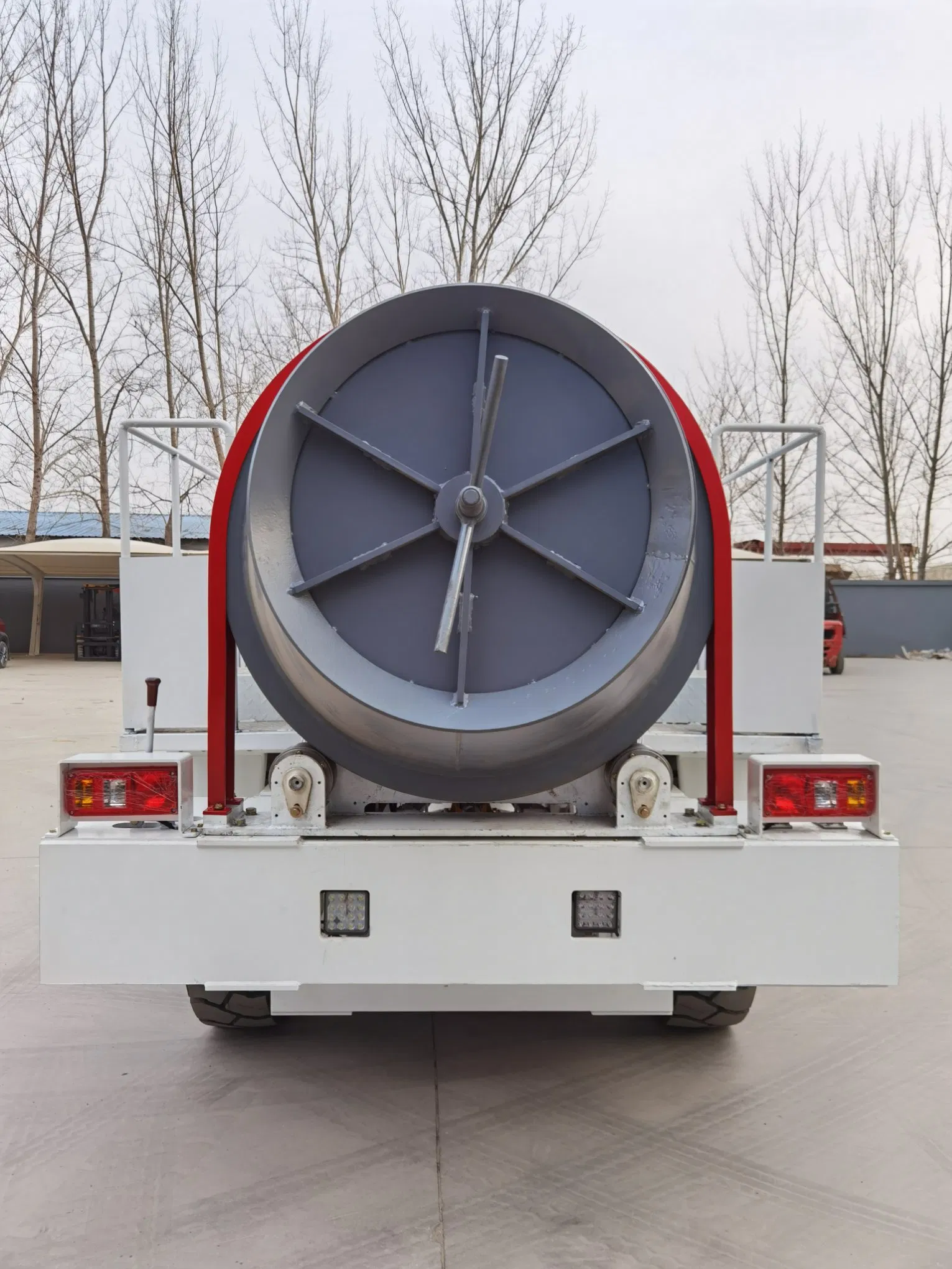

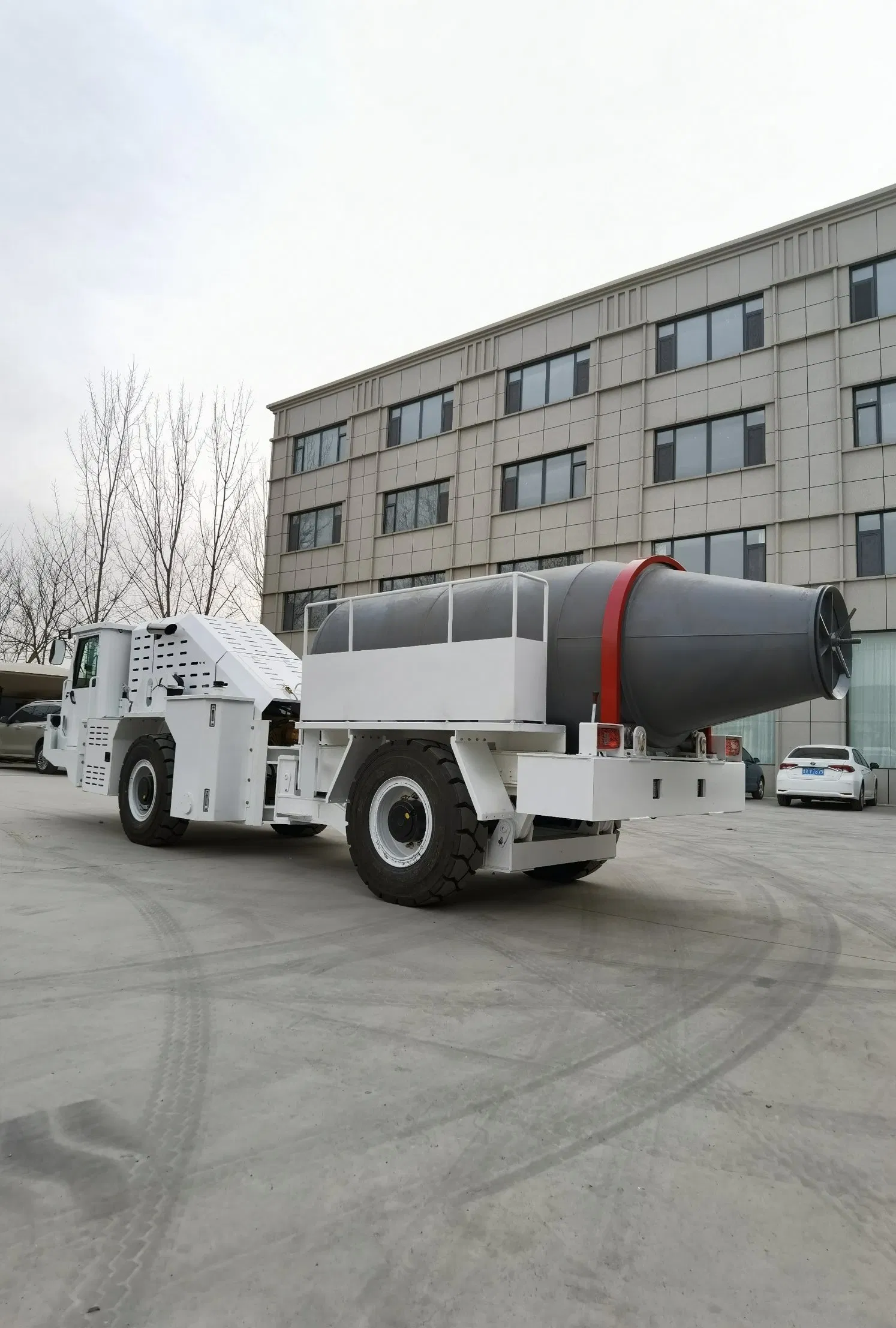

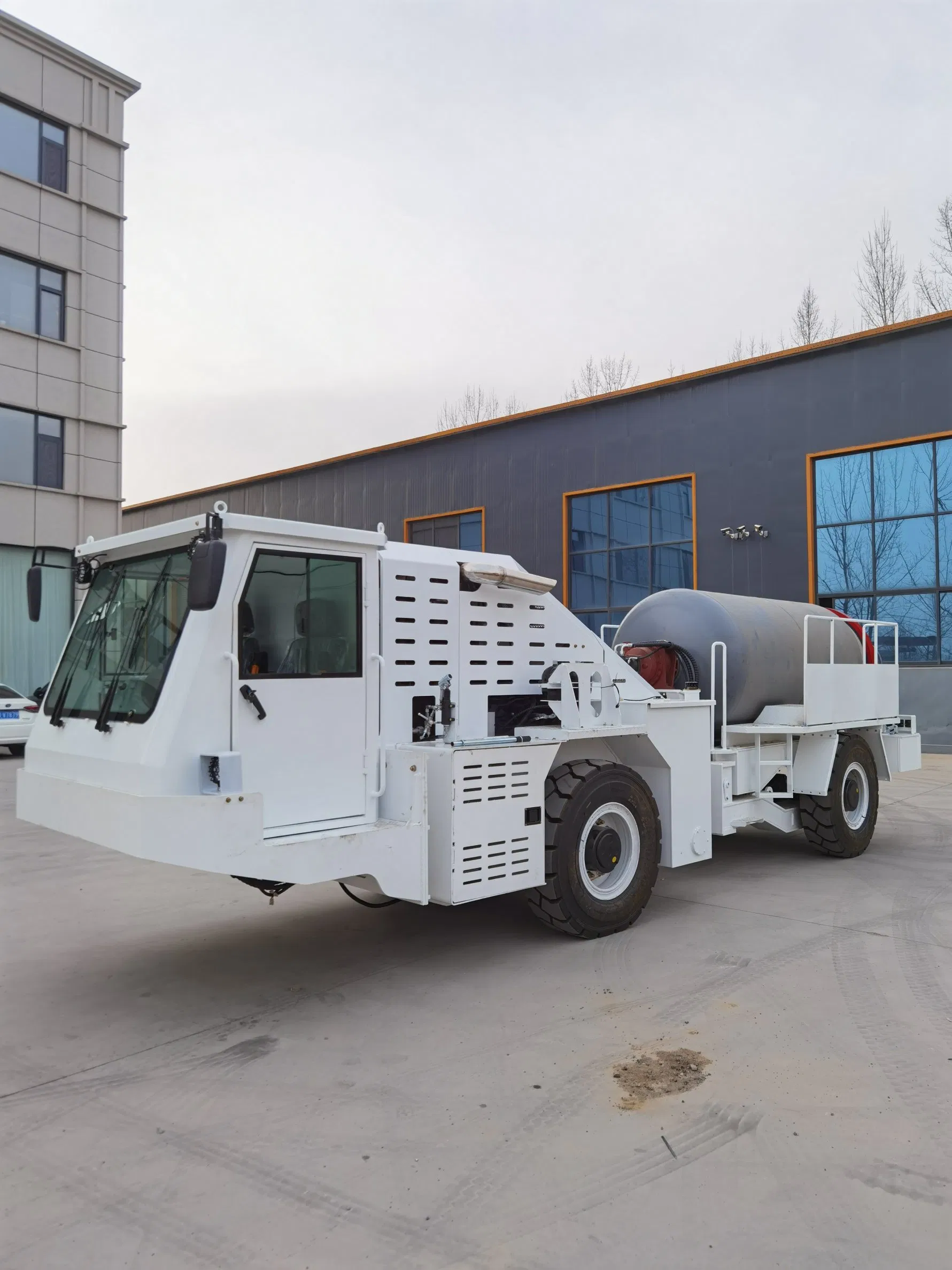

4m³ agitator drum transmission capacity for Underground Mining Multifunction Application.
Featuring a new generation of high-efficiency Drive-Train product lines designed for the most demanding mining environments.
| Parameter | Specification |
|---|---|
| Agitator Drum Transmission Capacity | 4m³ |
| Feeding Speed | ≥3m³/min |
| Discharge Speed | ≥1m³/min |
| Agitator Rotating Speed | 0-12 r/min |
| Feeding Height | 2.39m |
| Full Loading Speed (1-4 Gear) | 6.8 / 10.9 / 16.7 / 36.8 km/h |
| Max Traction | 120 KN |
| Max Admissible Gradient | 16° |
| Tyre Specification | 12.00 x 20-24PLY |

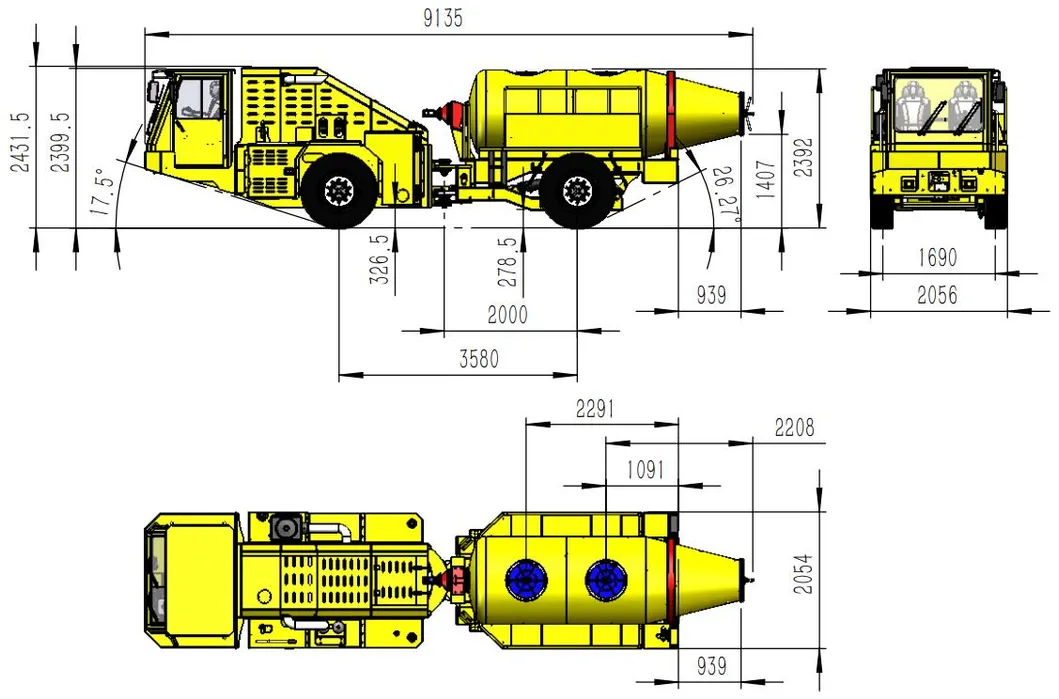

| Overall Dimension (L*W*H) | 9135mm x 2056mm x 2431.5mm |
| Total Weight | 13000 KGS |

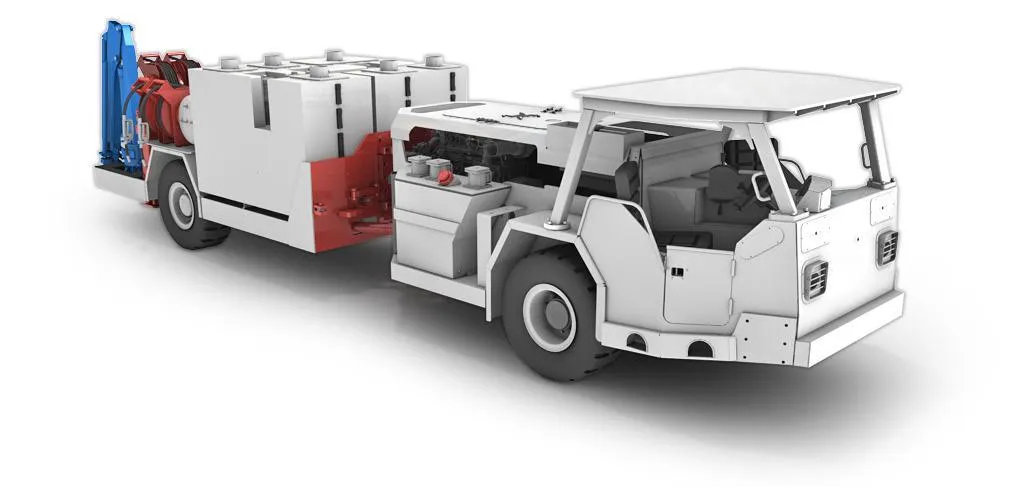

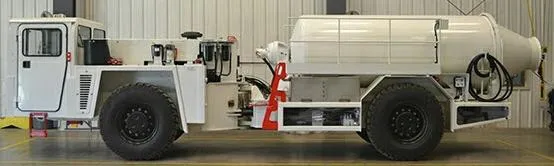

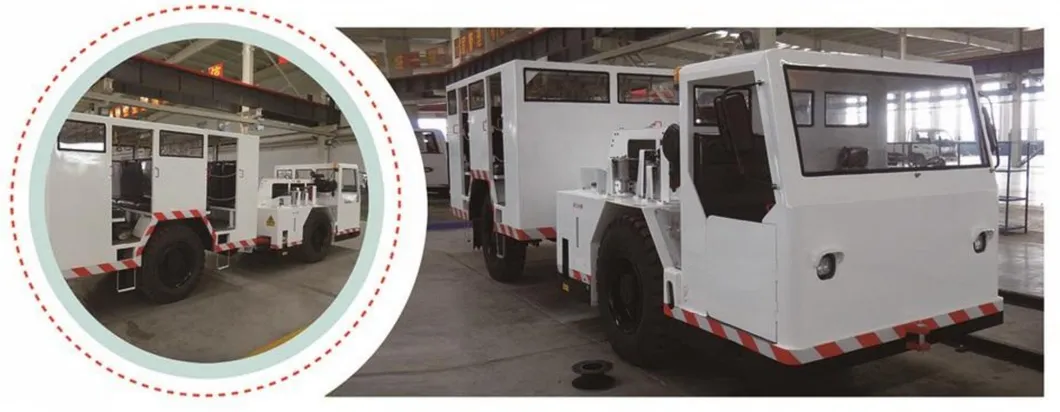

Additional Underground Utility Options:

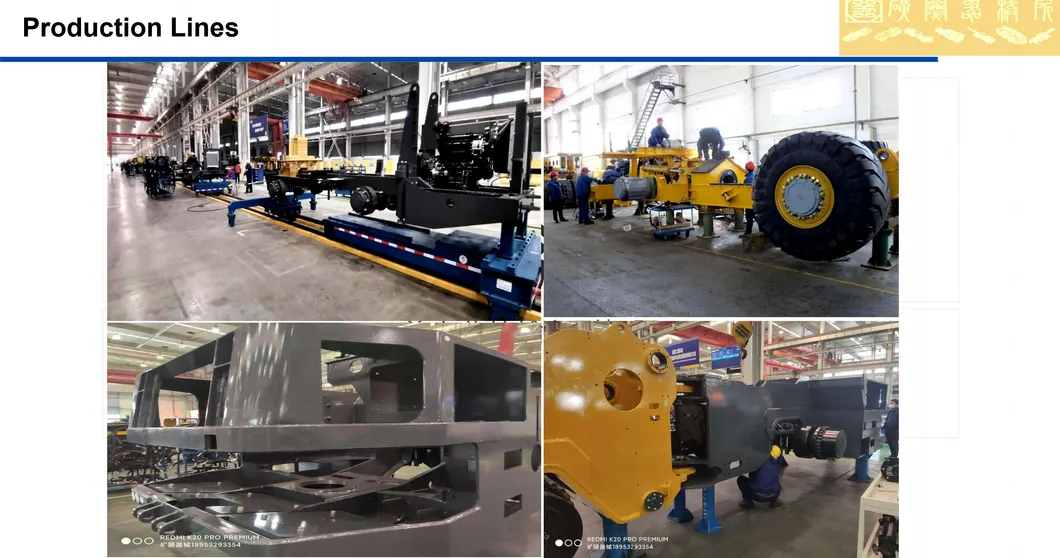

Our focus is on professional trackless mining equipment and engineering machinery. We provide high-performance underground loaders, mining trucks, and comprehensive drive-train system components including transmissions and axles.
