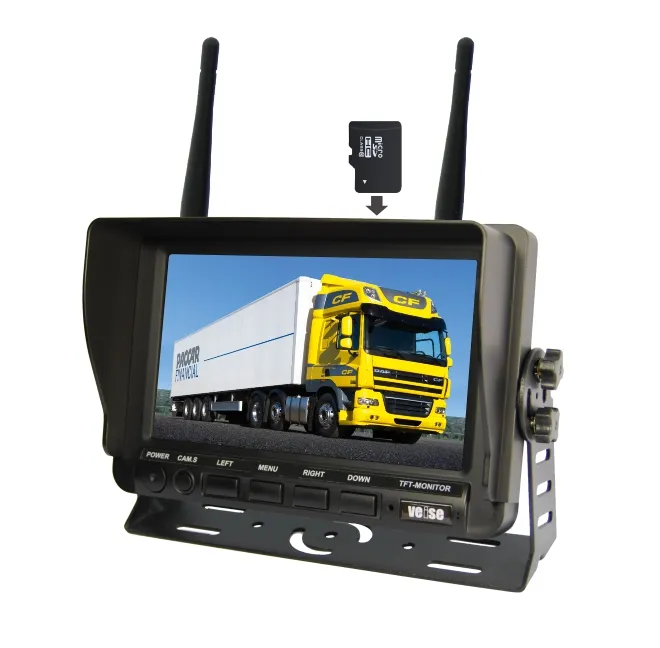

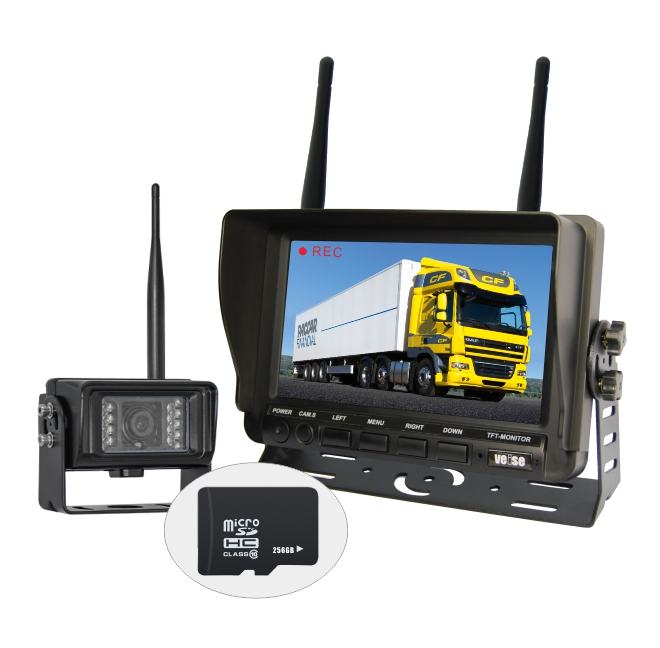

The HD wireless monitor is made of durable ABS material with a removable sun visor. The wireless camera aluminum alloy housing is waterproof and IP69K rated to resist high pressure water washdown. Working temperature ranges from -40°C to +85°C. Features graphical OSD menu, reversing ruler, and trigger priority application functions. Supports maximum 256G DVR TF card.
Utilizes a 7 inch IPS screen with 1024RGBX600 resolution for wide viewing angles and bright colors. The 1080P wireless camera uses a 1920x1080 image sensor and 18 night vision infrared LEDs. The IR-CUT filter corrects color cast during the day and improves brightness at night.

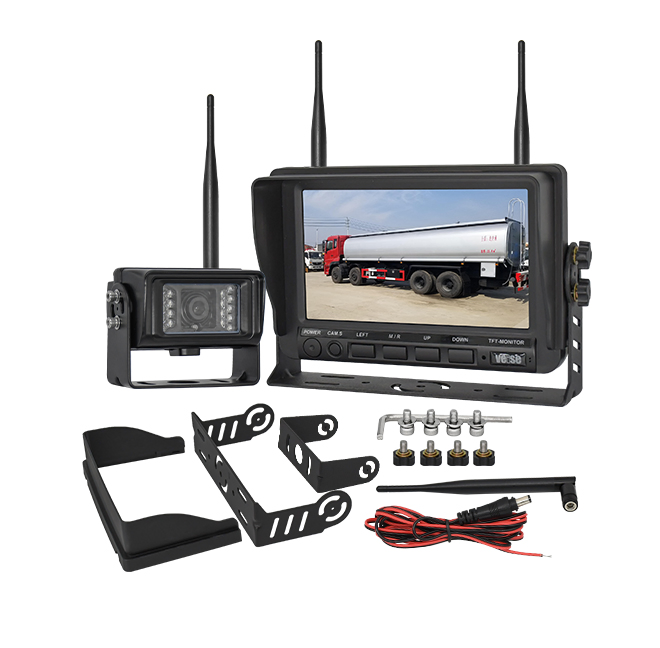

Compatible with working voltage DC8-32V. Easily installed in trucks, agricultural equipment, horse trailers, forklifts, engineering vehicles, ambulances, and more.
| HD Wireless Monitor (MWHD-774HD) | |
|---|---|
| Color LCD screen | 7-inch IPS screen |
| Wireless reception | Built-in 2.4G wireless receiver |
| TF DVR | Support max 256G DVR TF card |
| Picture mode | 4ch single / 2 split / 3 split / Quad |
| Receiving distance | Open area ≤300m |
| Resolution | 1024(H) X 600(V) |
| Brightness | 600 cd/m2 |
| Working voltage | DC8-32V |

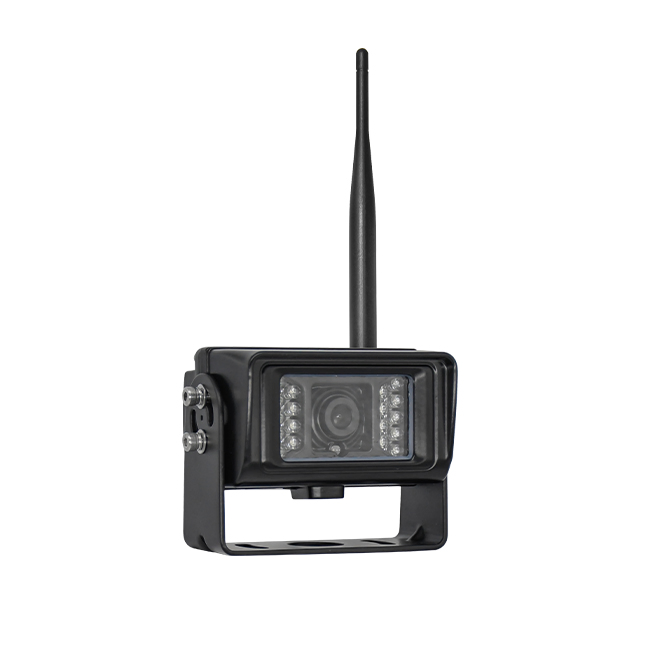

| 1080P Wireless Waterproof Camera (CWHD-152M) | |
|---|---|
| Image sensor | 1/2.9 Color DSP |
| Resolution | 1080P (1920x1080) |
| Viewing angle | 130° |
| Infrared distance | 15 meters |
| Waterproof rating | IP69K |
| Shell material | Aluminum alloy |
| Vibration Level | 5G |
